PROTECTION IN SANYO TV SLIM FLAT


The latest generation flat CRT tv sanyo sail or standard.menggunakan main IC (MCU) series: LA 769XX.yang internally similar prossesor .. and advantages as well as shortcomings in the system that use IC circuit tv this is a protection system that identifies how the workings of the entire configuration series based on parameter2 who planted in memory ic .. if at the start, there are abnormalities of these parameters (eg AGC magnitude, frequency horizontal, vertical linearity) is different, then the IC will automatically protect themselves on standby and a new .. will turn on again if the series has been corrected as appropriate.
In the case of the Flat TV sanyo CG21XS2 .. this aircraft is always back to the standby position will continue when turned on .. but all the stress, whether his or teg.Vertikal B even 15Vnya also normal tv .. still obtaining protectionism.
flyback condition was caused by his little problem .. there is little change in the internal capacitor capacity FBT .. well make the output voltage to the heater and ABLnya change, though very little.
little tricks can help this problem, with how to cut (break) .. J830 jumpers who headed pin 23 of IC LA76938 (these pins are called: INT1/P.0) one of the pins to detect / control the horizontal section.
TV will start spontaneously as in the past .. if your eyes sharp image will look like a lack of voltage to Video out/180-200V.
if you get my sanyo TV case like this, it never hurts to use tricks like ini.untuk ensure that the tv is not protected.

Original Source : zicelectronic
Translate by google

PROBLEM TV POLYTRON MINIMAX series

Problem MINIMAX Polytron classic series.


MINIMAX Polytron TV series has a classic problem, namely the damage the first time this has happened since the new tv operated / purchased.

Starting manufacturer minimax generation Polytron (PT.Hartono palace electronic) to draft a new type of power supply before using TR reg which type: D1877/78 the new series uses a new type of transformer and power transistor reg. its type FET is: FS5KM/FS 7UM / FS 10UM.
Problems that often occur in this type of regulator is: if I may say "defect" because the components of the voltage regulator to supply the horizontal driver using 10uF/63Volt.Padahal capacity of the mainboard if we look at it, this capacitor size for the mold number and spacing of components capacitor leg should use a larger capacity again (eg on type MINIMAX MX 1452 MG) seen at the capacitor number: C 507 (10uF/63V).
As a result sometimes occurs 50Volt supply voltage drop to the horizontal driver after passing through two resistors 470 ohm/2watt to trans drivers horisontal. this condition of the TV is always on standby.
This damage often occurs and the first distinguished prior to damage the other.
If you get a case like this which is very difficult at times tv is turned on, although in certain circumstances to be alive, but more difficult to burn, then follow this tip's me following.
Replace the capacitor (c507 series MX1452MG) or very easy you are looking for the other type, which is closest to reply elco elco two large (1000 uF/50v) in front of a capacity 10uF/63V regulator, replaced by elco 100uf/63V or 100uF/100V.

Polytron TV Protected


TV Polytron also sometimes have problems in its internal memory system (in series STVxxxx ic program.)
Symptoms are at the time of the restart, a few seconds will burn about 10-15 detik.Timbul voice for a while, after that protectionism / standby.
This is caused some errors in the data memory which the program contained in the IC.
To cope with this kind of thing, you just do tricks I will give the following:
Turn on the TV as usual, and wait for a position in a state protectionism tv / standby, use orsinilnya remote, press the menu button on the remote and stand for about 3-5 seconds until the TV lights up automatically.
Direct Tv Usually normal again, because the data in memory has been reset automatically to the state of PP (pactory presets).
Why can happen so? because if the TV position standby.tombol power switch command signal (ON) to the IC program.Kalau on standby, pressed the menu button and hold in a few seconds will give RESET input data memory (flash). And if the conditions of normal memory, then in a matter of 'timing' in a particular order will interpret as a signal into the MENU position SERVICE.Dan system will automatically ask for a passcode to enter the sub-menu service.
Its passcode code is 1013 for basic settings (features) and 1014 to regulate the main parameters (H-frequency, V-amp, AGC, AFC, etc.)
And if you get problems like who I mentioned above, this method is the most easy to previous mengatasinya.Tapi first make sure that all the solder points on the TV machine no problem, it helps you thoroughly before all the solder points earlier.
For what? because the protection system will also be reading the state of circuit before normal stresses will diaktifkan.jika there is a problem in the soldered joints (usually located at the point of IC vertical feet, legs FBT, regulator) system will be captured into the protectionist position.
I think that's all and hopefully can be useful for you .... thank you.

Original Source : zicelectronic
Translate by google

MONITOR LCD LG FLATRON PROBLEM



Adding input from our friends: Mr. Nuryadi (Geoservices technician), I had the opportunity to view and unpack the contents of the stomach from brand LCD monitor LG Flatron series ranging from 15 "- 25" in the workshop geoprolog Balikpapan city.In all series LCD Flatron, damage which very often happens is damage to the system regulators and almost happened to all type (from 15 "- 25"). This is probably caused because the monitor was working 24 hours nonstop without resting a bit.Incidentally this time there is a "patient" who will we dismantle, namely type: LG Flatron 1753S L-BF the total dead.To start mereparasinya can you follow the steps below:1. Open / remove the 4 bolts behind this panel.Baut lock chassis back panel with metal box of the series regulator and inverter.2. Open the monitor casing by using a flat obeh (Minus) to release the lock casing body on all sides of the body monitor.Karena LCD monitor is not used as a locking bolt body.seperti when we disassemble the remote control.3. Lift the rear casing panel and remove the J1 connector, socket bound hand side control panel button.4. Remove the socket leading to the LCD device (socket-outlet inverter and the LCD data cable) hati2 do not let him rip the data cable.5. Open the metal box regulator block cover by removing insulation / glue it.6. Open the regulator block PCB screw this so we can lift / remove it from the protective box this.7. Soon you can see directly, there are some pieces that look elco 2-3 bulge, namely: C202 (470/25V), c203 (680/25V) and C204 (1000/25V).8. Replace the third component, It's finished then working .... easy right? ..In addition to the main regulator uses a transistor type: STK 0765, when difficult search for a replacement you can use TR FET type: 7UM or FS10 FS UM.If you get a complaint from the LCD monitor LG Flatron whatever type, do not hesitate to mereparasinya because only part of this course is that very often there is damage.Very easy even for beginners though ..Hopefully useful .. just say "thank, s" for mr.nuryadi on a distinguished opportunity given to me to unload the bowels LCD MONITOR LG Flatron.




Original Source : zicelectronic
Translate by google

MONITOR LCD BENQ FP731 POWER PROBLEM

In the case of brand monitor BENQ, I took a sample of the type: LCD BENQ FP731.Seperti most damage happened on the monitor type LCD is the case of failure of power system supply.Apalagi on this model, the block is very neat and compact regulator is integrated in a pack / case aluminum distinguished meeting, so that free air exchange becomes difficult.Immediately, on intinya.Jika you get this type lcd monitor has a problem can not be distinguished in turn, soon you dismantle all tutp casing from the rear, and lift all the aluminum cover to block power supply.Maka will look like below.
It appears the regulators block, then you can instantly tell what components are visible damage, but wait a minute, get used to examine several components of the major regulators in this block, especially the first time you check the fuse / fusenya, if broken immediately check the main transtor . In the case this time fuse and measured its IC core is good, then switch on the secondary tracking regulators, check the start of the secondary diode first, after that you can immediately replace some that look elco menggembung.Meskipun leak and you simply replace some of the visible elco Physical has leaked, but there is also a good idea to replace at the same time several other supporting elco, with reasons for working this regulator can work normally again without the risk back into your lap.

In the picture below, which damaged most valuable elco 470/16/25 and 1000/16-25V.Persis with damage that occurs in some other brand of LCD monitors.BENQ LCD monitor repair is apparently not as difficult as what I had expected this sebelumnya.Pengalaman may be useful for you, and at least some mental support for the other electronic hobiist.I say a big thanks to mr.Jestine Yong (Malaysia) who volunteered to help me in deep engineering and troubleshooting tricks in the LCD.

Tuesday, September 28, 2010

DVD MPEG UNIVERSAL

JING_CAI UNIVERSAL DVD MPEG BOARD

One more Chinese products are versatile; CAI Jing-universal DVD mpeg.
The ease at once the greatness of this universal mpeg are:1.Hanya using a single supply (5V DC)Mechanical and optical 2.soket general and universal, even provided 2 pieces of sockets for different types (suport for most types of optical DVD)3.mempunyai facilities to conform with the original remote (original)4.mempunyai facility to adjust the command panel and LCD display on almost all brands of LCD / DVD panel DISPLAY5.mempunyai facilities VGA out and a DVD out6.mempunyai facilities for the USB input (the bundled USB port directly)7.dapat applied to almost all of your DVD player or VCD player (up-grade).
HOW installation:1.PASANG / Connect the socket ALL GOOD FOR MECHANICAL SYSTEM TRAY OR IN ACCORDANCE WITH MECHANICAL servo identity.If a player uses a cover system PULL-UP / open press (on most brands Player Polytron), you simply attach the two pieces just to swith CLOSE cable only.
5. POST ALL ROUTES FOR AUDIO AND VIDEO WHICH ALSO HAS USB PORT READY FOR USE.
6.YANG LAST TRACK IS Connects power supply (5VDC) AFTER THE INSTALLATION HAS BEEN INSTALLED ALL CAREFULLY and tidy.
7. "GETTING STARTED AT THE FIRST TIME ".... your player was ready for action ...
Universal MPEG is very very useful as an alternative to mpeg to be hard in the can, is also very interesting if you want to UP-GRADE system from VCD to DVD player ..
Especially considering its price is relatively cheap (at Harco Glodok current price is around 110-130 thousand RP)
For those of you who are experienced in handling the DVD, would have been very understand how to install, but may still be somewhat difficult for a beginner or even hobiest who want to try it, because it .................. .
The next article is: How do I adjust the settings on the LCD PANEL, BUTTON REMOTE PANEL and control in order to function as it should ...

TRICKS ON THE CRT SCREEN

FACING SOME PROBLEM IN CRT SCREEN.

This time I discussed about some kind of problem / damage that has to do with screen CRT.


Filament WITH SHORT CATHODE / HEATER

When this happens, the display will show the color that is not normal, loss of one or two primary colors (RGB), Also if any one color dominant over the other and in accompanied Blanking lines.
It is important to be sure the difference between damage to the CRT or the RGB block circuit.
We can use a tool called CRT Restorer GUN (gunner crt / screen) ready pakai.tapi these tools are relatively expensive for most technicians.
Here I try to give some tips based on my experience on the desk.
To overcome this problem in which one leg of the heater cathode short (this causes the short to ground as well, because the heater supply lines associated with ground lines on FBT).
The solution is of course we have to separate the heater supply lines to the ground, how? course by providing separate paths for heater.Dari Suplly where? not possible we use another transformer for heater voltage.
You do this by utilizing more of the functions of FBT, because it is a transformator.Untuk FBT get extra voltage of the FBT is simply by wrapping a few rolls of wire / cable to the ferrite of FBT.hasilnya still a high frequency AC voltage, use a diode IN4007 and elco 100uF/50V to meratakannya.Pastikan earlier that the measured voltage which is approximately 6Volt by adding or subtracting the number of coils (usually between 2 to 4 wrap). Note that this circuit should not be at all related to TV channels on the PCB ground.

Disconnect the two heater lines on RGB pcb, and solder two wires to get to the circuit ini.Buat own place neatly.
This method has helped me in the case of SONY Trinitron CRT screen of either 29 "or 20".





ALTERNATIVE SCREEN SUPPLY

Screen alternative is a way to replace the function of abnormal FBT screen dim / bright or not can be set again for the glue permanently, is common in Polytron brand, Digitec, samsung etc.By default, the G2 (Screen) took the high voltage generated in the direction of FBT along with fokus.Keduanya voltage is set internally by resisitor and internal potensio to divide the amount of voltage that is suitable for Focus and Screen.G2 require large voltages between 500-100VoltDC, depending on of the characteristics of CRT.To be able to generate voltage instead of this, we can take from the collector point Transistor Horizontal out, because at this point there is tension between the TR and the oscillation is quite large FBT Circumference (around 1600v ACP-p). Because the current magnitude is relatively small for the G2 (only in size mA), it is safe for us to take a little current and voltage of sini.Pun this method also was applied by using the SONY Trinitron CRT.Use of high voltage diodes (recommended diode nuts). To flatten ini.Resistor 100 ohm voltage is simply as a barrier also fuse to prevent short on rangkaian.resistor and potentiometer divider is the relative size, but should be within the limits of the size of Mega ohms, you can replace value here to get the voltage diinginkan.Dulu distinguished in this way I apply many of the TV Digitec, Polytron, and some monitors.The circuit is very easy to make and can work well.


CRT RestorerCRT Restorer circuit here is useful to eliminate the leakage that occurred between the cathode-cathode RGB to G1.Jika Grid is the case then one or more colors will appear more dominant over the other, and the other colors look very weak / dim, can you measure / compare the three primary colors such stress on the position of the TV lights, the colors are dim would be measurable lower against the other colors.This is the result in the existence of very small particles (dust microscoptical) which inhibit the rate of electrons from the three CRT Electron Gun.The workings of this series is to provide a negative high voltage to the cathode RGB moment of this grid1.proses download the full right conditions of the CRT is still hot after the heater is activated prior to stepping electron becomes easy.This circuit configuration is to use a DPDT switch 4 position should be modified in advance to switch hit (no lock) with a view:
Consider the composition scheme ..


"Already in the revision"
When the switch is not in the press, diode rectifier fill elco 2.2 uF/350v, cathode and the G1 go to the circuit voltage of the transformer Vu meter.Dan 1amp go directly to the heater to heat.When the time switch in the press, Elco will be separated from the path of a diode and will spend its contents to the G1 leg while the foot 300V cathode towards the negative path. (Giving momentary voltage stored in elco), while the heater voltage of the transformer will be automatically disconnected (open). important to remember that during the filling process to the cathode voltage, heater voltage should drop out.Making this tool should be placed in a plastic box to avoid electric shock, use the legs RGB sockets used to create socket "prick" as many as 4 units, which do not use cable terlalukecil, to make the puncture handle, use a plastic straw from drinking mineral water (aqua ), cut into 3cm long, put the wires into the straw which has been cut and subsequently solderkan to foot former RGB socket, push the foot back into the RGB socket with the intention of straw as insulation as well as handles.How to use:1.Masukan two heater plugs cables2.Masukan pin plugs G1 to G1 in the CRT.3.Masukan foot CATHODE plugs into one of the legs of the suspected weak CRT / damaged4.Nyalakan the tool and wait until the heater on to warm up first5.Tekan DPDT switch, you notice there is a quick hop fire in the CRT, no problems, it is the process of cleaning the legs of the cathode, repeat until no more sparks a distinguished look.6.Lakukan again against another color cathode which are considered problematic, and do not in trying to press the switch on the cathode-come normal.dibolehkan if the suspect is less normal.7.kalau still not show the range of normal measurement meters, increase again with heater voltage selector switch (6V-7, 5v or 9V) to further heat up the heater, should be on trial at the lowest voltage positions first, then Rev voltage.As a rule how much deviation meter normal reply, can you try / compare the crt which is still good to be measured without knowl-charge-an.Tandai level.
Although I really like doing repairs crt which was dark with ini.Tapi not at the recommended tool for novices, because the risk of electric shock and rupture could have terjadi.Rangkaian heater is above the artificial orsinil ZICworkshop.Good luck and you will know the outcome.If at the time you work with this tool and does not work? .. Take it easy .. I think CRT is indeed already can not restore.I recommend to always try and use it as the best teacher ..

Original Source : zicelectronic
Translate by google

VIRTUAL BATTERY

HP VIRTUAL BATTERY

HP VIRTUAL Battery is a replacement cell phone batteries for you I use my own phone as modem.Termasuk Haier D1200P who use the phone as a modem internet.
Why should use this virtual battery. For those who surf hobby "full time" with a phone modem, would know the problem, the battery becomes hot and fast reply wasteful soak.Alat even this is a good solution to keep and care for our mobile phones from the possibility of damage caused by over-charging his batteries.
VIRTUAL BATTEREI I created this work as follows:
Source of its power supply we draw from the USB port, because this port is very easy and simple to use and provide enough current source at the online mobile phone standard (500-750mA).

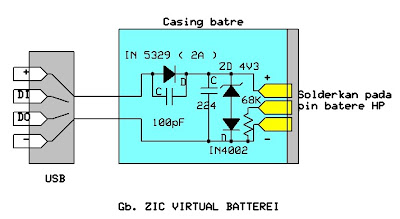

The workings of the circuit is as follows:
Diodes in 5239 or diode 2Amper this standard in addition useful to give direction voltage polarity is also distinguished as a component of protection against mistakes penggunaan.Anda can only use 1 Amp diode (IN4002-4007). I use the IN 5239 is just because you want to stay alone, more resistant heat.
Zener diodes IN4007 4v3 and configured to create a portal for 5V voltage (4.3 volt zener Vin4007 0.7) and is useful as a protection system against possible voltage spikes in the event of damage to the CPU.
220nF capacitor as a stabilizer danpengganti battery cells also asli.berikut 100pF capacitor to smooth and filter the dc current through the diode 5239 which came out against the induction logging.
Configuration between zener4v3, and C 220n IN4007 diodes form a cell replacement of battery cells in fact, because the battery is actually a capacitor which had a large capacity.
You can just remove the three components can work with atas.meskipun tersebutdi baik.Tapi results are not as good as that use virtual cell (replacement), which certainly is a distinguished security we must think to avoid the things which are not in want.
How made is to use a cell phone batteries used in the waste washed his cell, this circuit and solderkan raft on the battery terminals with the polarity of which benar.Buat hole for two wires leading to the jack / plug USB.Tentukan cable length required to taste and use a fiber cable with a diameter of at least 1mm.
If some type of mobile phone battery is very thin, use a small box for this circuit and connect the two cables back to the output voltage to the battery casing hp.Atau also if you do not have a battery casing the former, just use alligator clips to the battery terminals on the phone .. Pin middle of the virtual pin replacement batteries only BSI (Battery Size Insdicator) allows you to HP Nokia.
This series of phones you can make for other brands.

Good luck and pity your mobile phone.


Original Source : zicelectronic
Translate by google

Substitute AKIRA Flyback BSC 25-1055

PENGGANTI FLYBACK AKIRA: BSC 25-1055



I was confused to get the TV AKIRA 14 "broken his FBT, which bertype: BSC25-1055 KONKA.Karena the mechanic made in jakarta in particular the most allergic to the artificial FBT Konka, because spare parts are difficult to obtain.Fortunately I since 2000.selalu records and record the composition of the pins from the legs of each flyback all kinds type ever signed in ZIC WORKSHOP (our garage).After I observe it turns out there is no equation of the type of this type, then the only way is to modify the flyback-like arrangement of legs.Of the many, my choice fell on the flyback Goldstar with type 154-177B or 154-064P (the second type are identical)



The order of pin FBT bsc25-1155 is as follows:
1.PIN1 = Coll (H-OUT)
2.PIN2 = B + (VCC)
3.PIN3 = 180V (VIDEO OUT VCC)
4.PIN4 = GROUND
5.PIN5, PIN6 = N.C (TAKTERPAKAI)
6.PIN7 = ABL
7.PIN8 = HEATER
8.PIN9 = N.C (TAKTERPAKAI)
9.PIN10 = AFC
While the sequence of FBT 154-177B or 154-064P is as follows:
1.PIN1. = Coll (H-OUT)
2.PIN2. = B + (VCC)
3.PIN3 = 180V (VIDEO OUT VCC)
4.PIN4 = GROUND
5.PIN5 = 15V
6.PIN6 = 24V
7.PIN7 = 40V
8.PIN8 = ABL
9.PIN9 = HEATER
10.PIN10 = AFC.
The trick is to modify it as follows;
After the original FBT (BSC25-1055) have been removed, disconnect the line by cutting the pcb track (using the cutter) that led to the hole (pin) 7 and pin8, while pin9 already free (NC). Input FBT-154 FBT 177b into the socket. after a certain point and pin8 pin7 been disconnected, jumper (plug) pin (feet) 9 to the line who headed pin8.dan pins (legs) 8 is also connected to the line that led to the pin external pin7.setelah ABL from fbt154-177b combine with pins (legs) 8.
flyback ready for action, and good, no slightest difference to the original appearance, such as image width and Tinggih images, as well as temperature rise TR. Hor-out is also very normal.
TV sets were ready for action .. JUST DO IT.

Monday, September 27, 2010

RESET CODE TV CRYSTAL

CRYSTAL TV sometimes and even often have problems in IC memory. Is condition where the TV does not want to start (just standby) even though the power button on the remote already in the press many times. This incident often can I do if my petir.Dugaan rainy season and damage This occurs because the TV exposure induced by lightning from the grid or antena.Tapi also not uncommon to happen by itself.
First I always replace memory IC which bertype: 81DC (IC actually this is a general memory IC that is 24c08, and who is 24co4 bertype 41DC).
If you do not have a backup memory "real" her, or who have been programmed, then there is no other way, we have to reset the memory IC otomatis.Dengan records are not physically damaged or short.
The trick is as follows: turn on the TV and leave it on standby (protectionism), take the remote control: Press the OK button and the Power button on the remote, hold about 3 seconds, wait until the TV automatically turns on.
Check the picture and sound, if no reply is not normal, immediately go into service mode menu to reset the parameters utama.Karena if not, someday TV will return terprotek back.
Here I often get this case on the type C-201 (20 ") and C -1 401 (14").
To enter the service mode, in standby press simultaneously vol () and VOL (-) on tv and tv stand up to turn on automatically to a position of service mode.
Apparently the trick is often helped me over the kitchen work.
Hopefully useful for you.


Original Source : zicelectronic.blogspot.com
Translate by google

DARK SCREEN TV CRYSTAL AMAZON

TV CRYSTAL AMAZON FLAT

One day we get mandapatkan 4 pieces of crystal of TV brands an office in east Jakarta, three of them measuring 29 "by type: CRYSTAL AMAZON CTV 2915 With the same damage conditions, namely: the image is very dark at all with normal voice condition.As usual, the examination directly to the block RGB.Saya find there are two resistors which burned, its value also can not be seen again.For those who've experienced, this should not be a problem, because this is a resistor divider to TEG video output (180V). I immediately replace these resistors with 2 pieces ohm/1watt value of 1, do not forget who I replace elco 22/250V my guess is the source of the burning of the resistor divider.When you get crystal TVs 29 "amazon with damage like this, you simply replace the R2046 and R2047 (1ohm/1W) and C2012 (22/250V) and C2018 (47/16V) ... done.In the case of crystal tv the other one is narrowing / smaller horizontal width on the left and right with the image / raster do a bit warped.Such damage is clearly due to the voltage output is not hor stabil.ini elco components caused by C441 (100/160V), which has been leaking and bulging.Easy and simple, may be useful ......



Original Source : zicelectronic.blogspot.com
Translate by google

USING CRT MONITOR Tips

Tip's on How to change the configuration of the yoke CRT monitor to be used in conjunction with aircraft engine must be on fox TV.Mengapa first? because the resistance value of the horizontal yoke monitor is very low (from 0.2 ohm - 0.6 ohm) to the value that can be loaded to a horizontal deflection circuit of a TV set (0.6 ohm - 1.8 ohm). As a result, the load transistors Horizontal is becoming so severe that may cause damage directly.
This time I tried to give a little information about how to change it.
All you have to prepare are:
1. CRT monitors complete with yoke
2. TV aircraft engine modules which have facilities for model pinchussion or 21 "more.
3. Transformer yoke "wansonic" (to yoke SVGA monitor or monitors Flat)
4. Electronic tool (solder, tin, etc.).

First you need to do is, pay attention to the composition of the horizontal cabling from the yoke, there is usually an additional circuit in the yoke of the monitor (a series of dynamic convergence and pincushion circuit)
. Change the horizontal part of this arrangement which was originally set up in parallel to the composition seri.Dengan how to disconnect all dial points on each terminal yoke horizontal (vertical sections do not have the fox). Remove / disconnect all wiring from the additional circuit (pincushion) is , grab the ends of the cable core of the coil spool horisontalDan you will get four tip line / cable of this horizontal section, two on left and two dikanan.Ukur with avo meter to indicate each coil (coil A and coil B). Connect one one end of coil A to the left to the end of the coil B side kanan.Dan remainder of the two ends are not connected to the terminal point is that we will use the first selanjutnya.Proses completed, the next you immediately measure the resistance value of the horizontal yoke which we have fox This, if it was enough to range between 0.6 to 1.8 ohm with avo meter precision (accuracy; recommended by the digital meter AVO). if it is enough, perangakat CRT ready to use.
Some of the terms which you need to consider is: Do not ever change much less static convergence ring pull component in CRT neck, because if it has changed you may need a day of even more to reset the position that has been set at the factory is very critical to ini.setelan crt because the number of pixel monitor more than crt TV, and for that reason I recommend using the TV machine settings have facilities pinchussion / degree of curvature side of the picture. (Character: there are two manual trimpot near vertical IC engine TV).
If the size of the horizontal yoke resistance is still too low (on the yoke or yoke monitor SVGA monitor 17 "monitor yoke up or too flat). We need to use additional components, namely the transformer yoke Wansonic (specially made by the manufacturer wansonic for use by the TV plane maker assembly). transformer is widely encountered in the market along with engine output wansonic tv.
How to use the transformer wansonic are as follows:
1.Hubungkan blue cable from TV to the leg machine nomor1 transformer also go directly to one terminal horizontal yoke.
2. Connect the red wire from the TV machine towards the last point (pin6 atau7) from the foot of the transformer.
3.Hubungkan red cable from the yoke to one of the pins on the transformer wansonic (pin4, 5,6,7) to adjust the width of the image.

Additional Information: It is recommended to use a machine that has the TV regulator Facilities pincushion for linearity in the left-right and top down can be arranged as possible.

Original Source : zicelectronic.blogspot.com
Translate by google


Tips to repair Samsung Tuner


TIP'S way of knowing the damage this TV Tuner is the answer to brother Ian in http://answer.yahoo.co.id are asking how traits - traits damage to the tv tuner.
His manner is as follows: look at your TV set, whether there is still some channels that are still visible or not by how moving the channel, continue to do the following:
You go to MENU then to the search mode (TUNING) manual / semi-auto and not the fine tuning.coba your search (search program) and observe whether there is a channel or a broadcast that can be locked?? If not, and broadcast looks continue through without stopping locked , then the damage is on the IF transformer components (6019, 498U, Eo8L, 9074 etc.). But if the broadcast stopped or locked properly, we will most likely damaged or may simply TUNER.
But if after the turn of the IF is correct, and broadcast TV is fully charged, turn off the TV at least 1jam.Setel again, consider whether the broadcast was not changed and remain good as at the time of searching process is then completed. And if there is little change in color or sound, it means tuner were damaged in this case the call occurred shortly pergeseran.Ganti tuner.
Component Tuner not running sendiri.Pastikan supply voltage for the tuner is normal. Good for him VCC (5V/9V/12V) and voltage is 33V for tuning existing and stable, and normal AGCnya voltage of about 50-75% of the supply voltage.
Problems with IF components cause the TV can not lock, the problem at 33V voltage causes a shift in the broadcast or none at all if 33Voltnya not exist.
Problems in the IC program could cause the tuner does not work because the setting is the amount of tuning in IC program.
I think enough to simply add a sense of direction: - typical features of damage to the tuner and hopefully a little can help you.



Original Source : zicelectronic
Translate by google

Flyback Transformer Comparison


Flyback transformers replacement guide
6174Z XXX
Original
Equivalents Diagram
6174 Z 1002 A
6174Z2001G
VIEW
6174Z2001GGTZ
6174 Z 1003 B
19-70052-001 VIEW
19-70052-011
6174Z-2001J
6174 Z 1003 D
6174Z2001D
VIEW
6174Z2001J
FMMPC 51-1003 D
6174 Z 1003 G
FEA 972
VIEW
6174Z-1006C 47 F 13 0770
47 F 13 0770 G
47 F 13 0770 S
FEA 685
FSN 15 B 022
FSN 15 B 022 N
6174 Z 1010 B 6174Z1020B VIEW
CF 1109
LCE CF 1109
6174 Z 1012 B VIEW
6174Z1012C VIEW
6174 Z 1017 A VIEW
6174 Z 1017 H VIEW
6174 Z 1020 B 6174Z1010B VIEW
CF 1109
LCE CF 1109
6174 Z 1024 B 154245A VIEW
6174Z-1028B LCE CF 1473
6174 Z 1029 A CF 1110
LCE CF 1110
6174 Z 1031 A
6174 Z 1031 D
6174 Z 1388 L
6174 Z 2001 A 154-218C
154 382 F
6174Z2001AGTZ
6174 Z 2001 E
6174 Z 2001 EGTZ
6174 Z 2001 F
6174 Z 2001 Z
6174Z2001AGTZ 154-218C
154 382 F
6174 Z 2001 A
6174 Z 2001 E
6174 Z 2001 EGTZ
6174 Z 2001 F
6174 Z 2001 Z
6174 Z 2001 B 154 243 A VIEW
154 384 A
6174 Z 2001 BGTZ
6174 Z 2001 BGTZ 154 243 A
154 384 A
6174 Z 2001 B
6174 Z 2001 D 6174Z1003D VIEW
6174Z2001J
6174Z2001E 154-218C
154 382 F
6174Z2001AGTZ
6174 Z 2001 A
6174 Z 2001 EGTZ
6174 Z 2001 F
6174 Z 2001 Z
6174Z2001EGTZ 154-218C
154 382 F
6174Z2001AGTZ
6174 Z 2001 A
6174 Z 2001 E
6174 Z 2001 F
6174 Z 2001 Z
6174Z2001F 154-218C
154 382 F
6174Z2001AGTZ
6174 Z 2001 A
6174 Z 2001 E
6174Z2001EGTZ
6174 Z 2001 Z
6174Z2001G
6174Z1002A
VIEW
6174Z2001GGTZ
6174Z1002A
VIEW
6174Z2001J 6174Z1003D
6174Z2001D
FMMPC 51-1003 D
6174Z2001Z 154-218C
154 382 F
6174Z2001AGTZ
6174 Z 2001 A
6174 Z 2001 E
6174 Z 2001 F
6174Z2001EGTZ
6174 Z 2002 A 6174 Z 2002 AGTZ VIEW
6174 Z 2002 F
6174 Z 2002 AGTZ 6174 Z 2002 A
6174 Z 2002 F
6174 Z 2002 E 39 L 518 AZT VIEW
FEA 383
6174 Z 2002 F 6174 Z 2002 A
6174 Z 2002 AGTZ
6174 Z 2003 C 39 L 1034 AZ
391034 A
154 388 G
FEA 287
FSN 15 A 008
FSN 15 A 008 F
FSN 15 A 008 S
FSN 15 B 004
6174Z8006A 6174Z8006B VIEW
6174Z8006B 6174Z8006A VIEW
6174Z8008A 6174Z8008A2 VIEW
6174Z8008A2 6174Z8008A VIEW

Scheme Programmer Interface EN25F80



This is a serial interface circuit eeprom EN25f80. That is in use with software PONYPROG VER.2.0C.I have been using to copy the memory to the mainboard of the dvd Vitron SUNPLUS (RM0716-3)

Vitron DVD Loading Problem


ZIC WORKSHOP In Bekasi, we often get dvd vitron with the case on loading (reading discs). Especially that use chips made by sunplus.
Here I study for the model: VITRON DVD-680, which have few complaints as follows:
Loading or reading of the old disc can occur because: optics is already weak and you can be sure to use the optical normal.Dapat also occur because of its spindle motor (disc player) is weak and not linear putarannya.Bisa also occur due to power supply regulation which is not good; elco 1000/16V to track its already menggembung.Juga 5V can occur because there is a problem in a servo system (IC CD5888) and the surrounding components.
For the case of the servo system, which used to be the cause is; supply voltage of 3.3V for the chipset is not good or drop.Contoh of this symptom is when the dvd will spin and just a few minutes, after which the error or even a panel of buttons did not work (hangs / jam).
This damage often occurs in the components: the elco 220/10v - two diode IN4002 (modifier from 5v to 3.3v) or if not use a diode, the IC LD 117-3.3 - two servo transistor TR: S8550.
If you observe during the process there are two transistors in the heat, then immediately replace a few components that I mentioned above.

If you observe the laser optics is not lit, check the voltage of 3.3 V for line pre-amp IC OPTICAL, usually the cause is choke SMD (L) or FUSE or R smd smd (usually written: 000) also check the two SMD transistor for optical laser drivers.
In case you check the servo IC R-value smd 330 and 470, it often changes its value because the heat makes frequent errors or freezes in the middle of the road.
The last and also very often happens is that causes damage to the optical memory can not translate the data, sometimes only want dvd just only vcd or mp3 or any, for this case the only way is to replace its EEPROM (memory: EN25f80). Unfortunately This memory is very difficult to get and you should be diligent, diligently copying the memory of which still normal dvd for backup if you get a case in memory.
Some cases in memory that is; NO disc, cliched images, picture boxes, only displays the brand image, sound disabled, the function keys, etc. error reply.
IC chipsets too (sunplus) can cause no disc damage, the symptoms are if you observe and grasp this IC and the heat is not normal (high) IC is damaged.
Hopefully this discussion can be a little help, especially for the brother Aditya who has sent questions, and fatherly all I say many thanks.


ZIC WORKSHOP in Bekasi, We Often get the dvd once vitron with the case on the loading (read disc). Specifically I use the chips made sunplus.
Here, I study for the model: VITRON DVD-680, the which has Some concerns as follows:
Loading or reading a disc-May occur Because: optics are weak and you cans check by using the optical normal.Dapat I Also Happen Because of its spindle motor (disc player) is weak and not linear. Can Also occur due to power supply regulation That is not good; elco 1000/16V to 5V line is LEAK.Juga cans occur Because there is a problem in the system Servo (IC CD5888) and the Surrounding components.
For cases in servo systems, the which is to be the cause is; 3.3V supply voltage for the chipset is not good or symptoms of this drop.Contoh Pls is the dvd and Would like to rotate just a Few minutes only, after That error, or even the button panel is not working (hang / misfire).
Often this damage occurs on the components: elco 220/10v - two diode IN4002 (modifier from 5V to 3.3V) or if not wearing a diode, the IC LD 117-3.3 - two transistor TR Servo: S8550.
If you observed During the two transistors is hot, then Immediately change the number of components That I mentioned above.

If you Observe the optical laser does not work, check the voltage v 3.3 channels for pre-amp IC OPTICAL, it is usually chokes SMD (L) or FUSE or smd smd R (regular written: 000) Also check the two drivers SMD transistor for laser optics.
In the case of the IC Also check your servo R smd valued 330 and 470, this value is changed frequently Because of the heat Often error or traffic jams in the middle of the road.
The last and very Also Happens Often Is That the damage to the optical memory cans not translate the data, Sometimes only dvd or vcd or mp3 course, for this case the only way is to replace its EEPROM (memory: EN25f80). Unfortunately it is very Difficult This memory and you must be Diligent diligently to-memory copy of the dvd you are still normal for backups if you get a case in memory.
Some cases in the memory; NO disc, negative image, checker, only displays the image, voice disability, function keys etc. I error.
IC chipset is (sunplus) cans cause no damage to the disc, if your symptoms are observed and hold the IC and the heat is not normal (high), this IC is Damaged.
Hopefully this discussion cans be a little help, especially for relatives WHO have Adit send a question, and all I say many thanks.

Original Source : zicelectronic
Translate by google
